10Pcs Carburetor Main Jet kit Slow Pilot Jet 10Pcs for PWK Keihin OKO CVK PWM
10Pcs Carburetor Main Jet kit Slow Pilot Jet 10Pcs for PWK Keihin OKO CVK PWM
Technical specifications of Main jets
- Size same as Keihin 99101-357 Main Jet
- 16.5mm in length with a 6mm Round Head
- Thread: 5mmx0.8
- The length of thread: 5mm

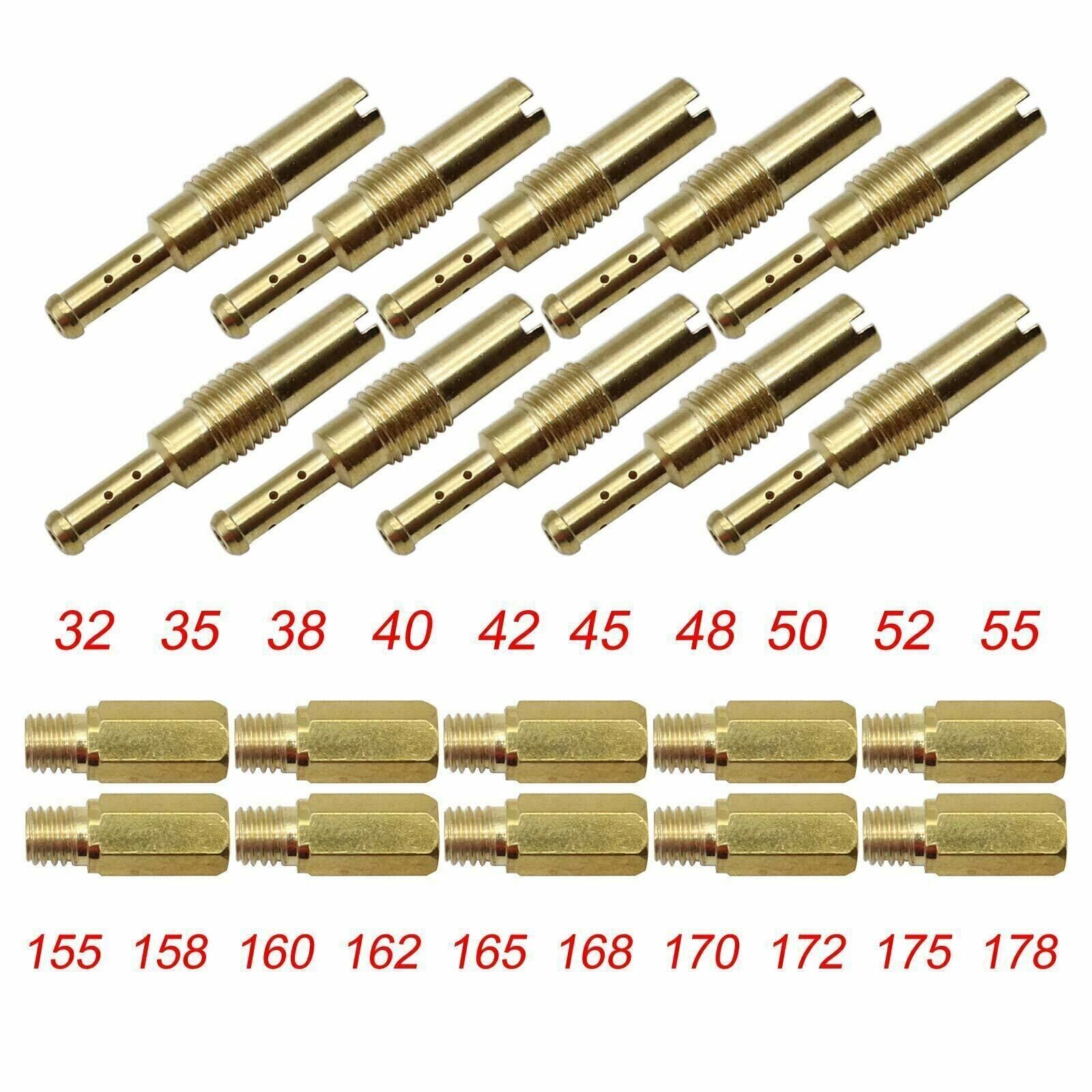

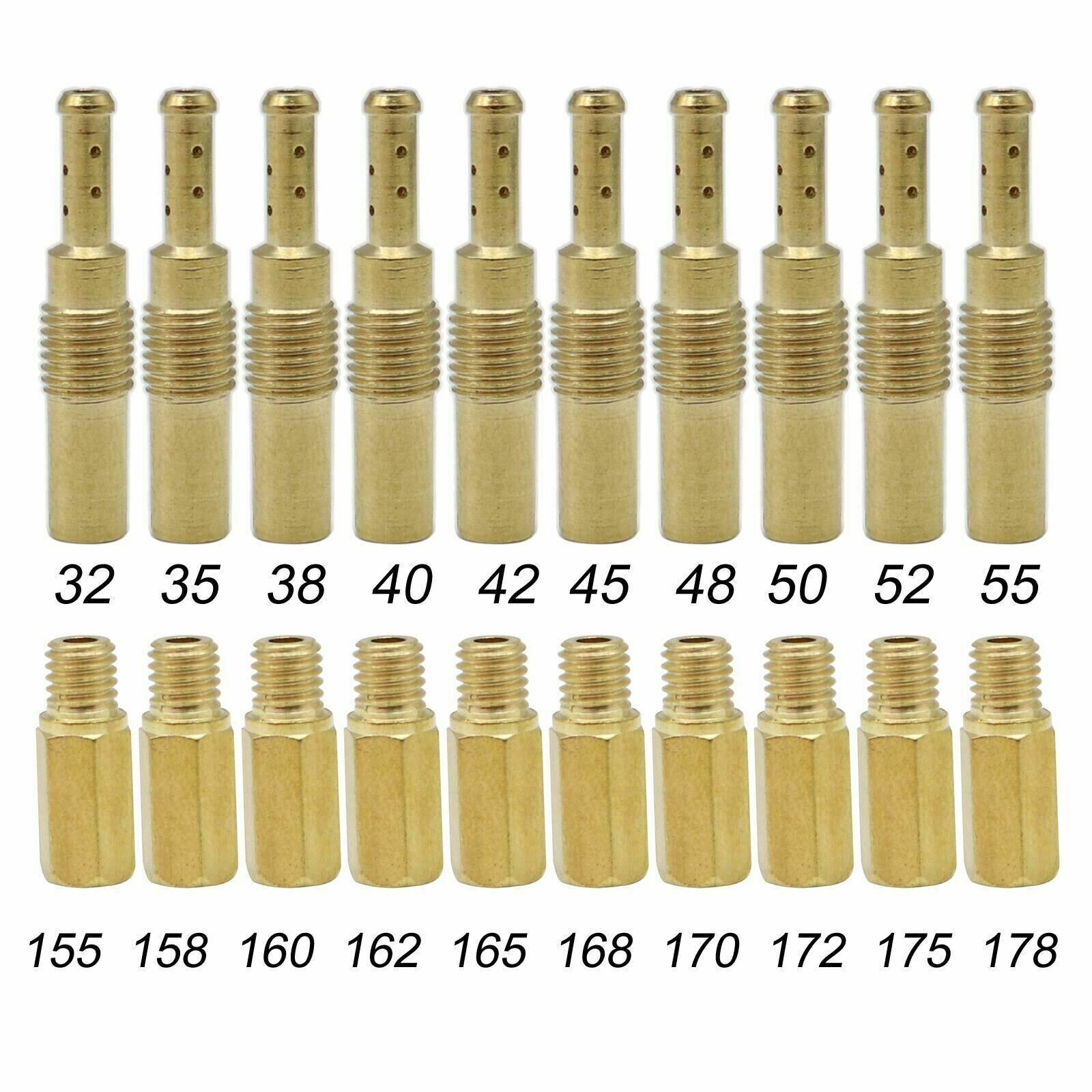

- Package includes 1 each of following sizes 155,158,160,162,165,168,170,172,175,178

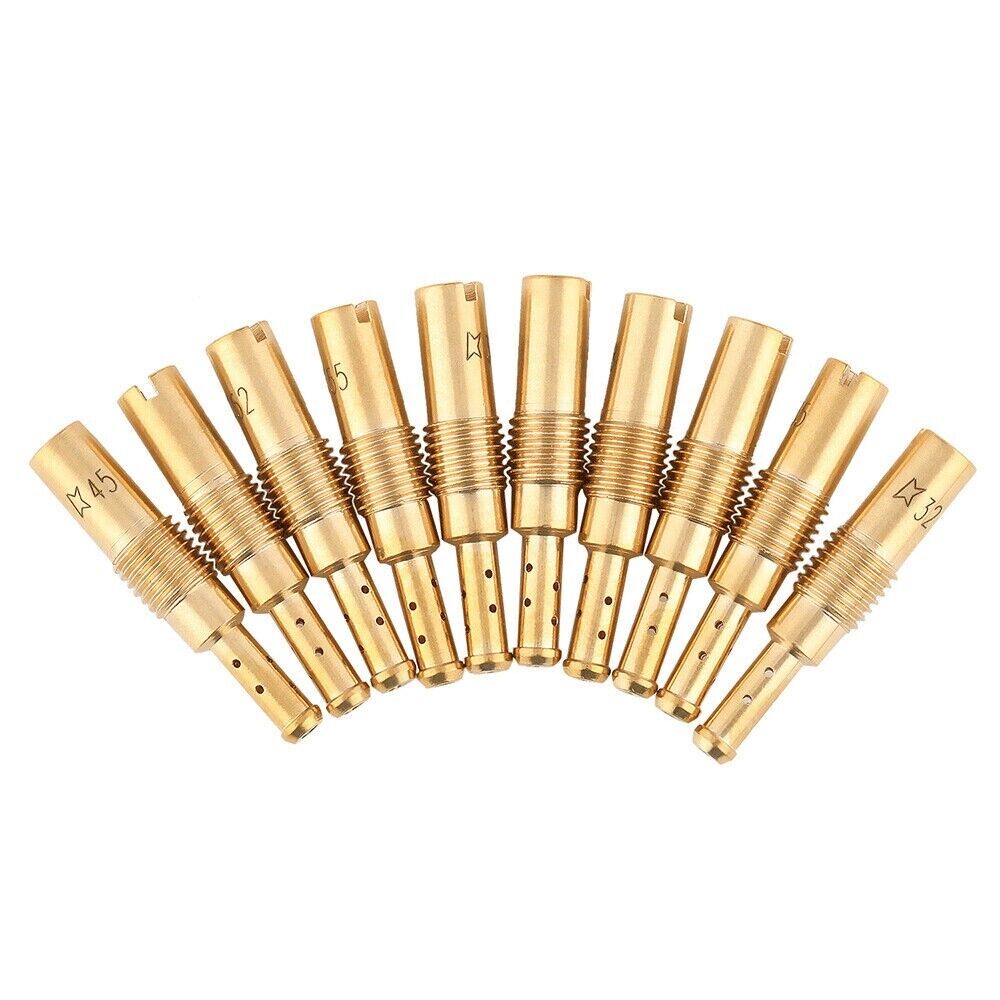

Techinical specifications of Pilot Jet
- Same size as Keihin N424-21 Pilot/Slow Jet
- 28mm in length with a 5mm Round Head
- The diameter of thread is 6mm x 0.75
- Package includes 1 each of following sizes 32 35 38 40 42 45 48 50 52 55
Fit the following carb (reference only, please compare with old jet before bidding)
- Aftermarket CVK20, FCR-MX
- PD22, PE20, 26, 28, 30mm
- PJ34, 36, 38mm
- PWM 34, 36, 38mm
- PWK28, 33, 35, 38, 39mm, PWK36 Quad Vent, PWK 35, 38 Quad Vents/Air Strikers
- Honda ATC200 (81-83), ATC250R (83-84)
- FL350R Odyssey (1985), CRF450R (02-05), TRX450R (2006)
- Hurricane (87-88) CR500R, CBR1000F
- Kawasaki KX125, KX250, KX500 with for Keihin PWK carburetor

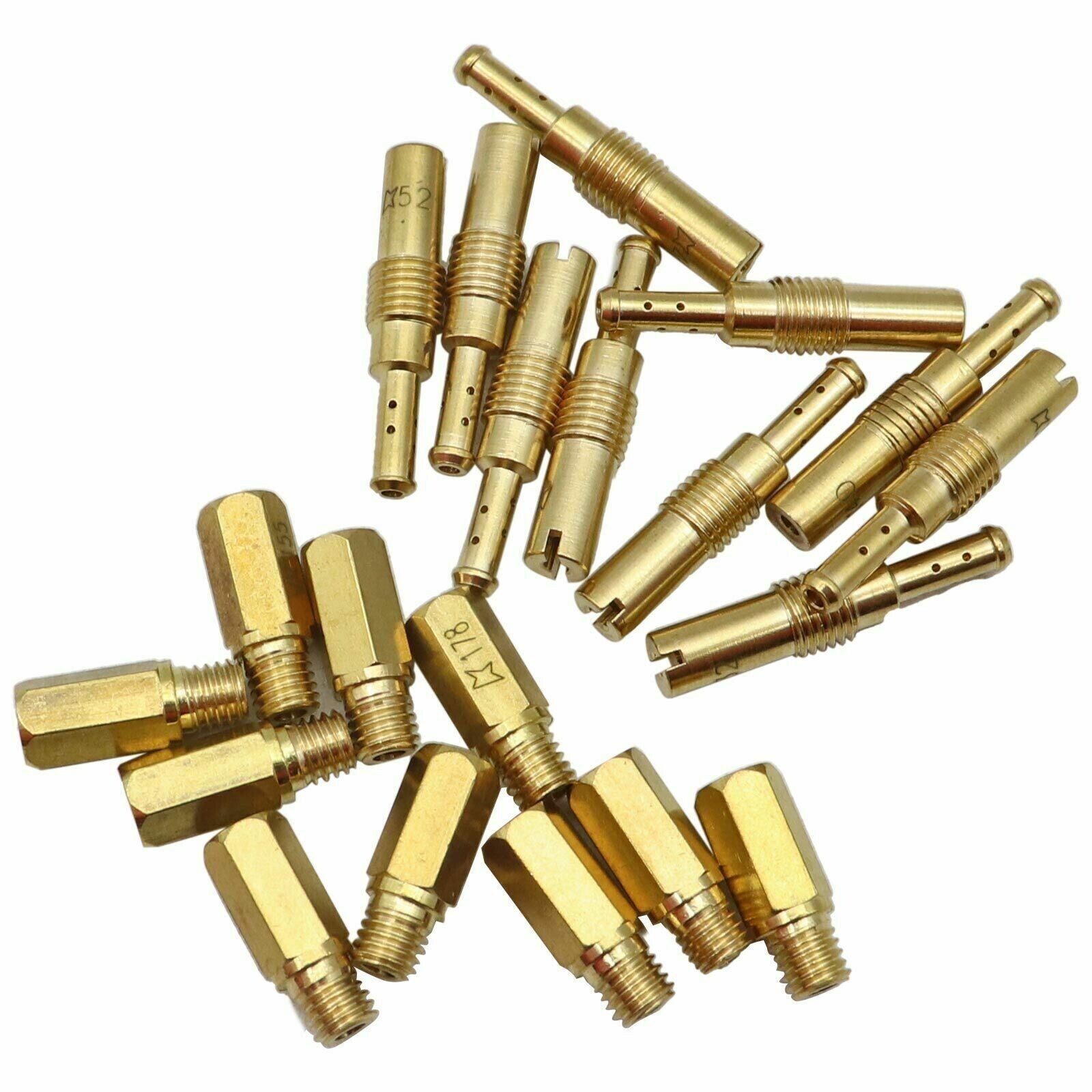

Package Content (as pictured)
- 10x Main Jets
- 10x Pilot Jets
